01 / T-series
Precast concrete components

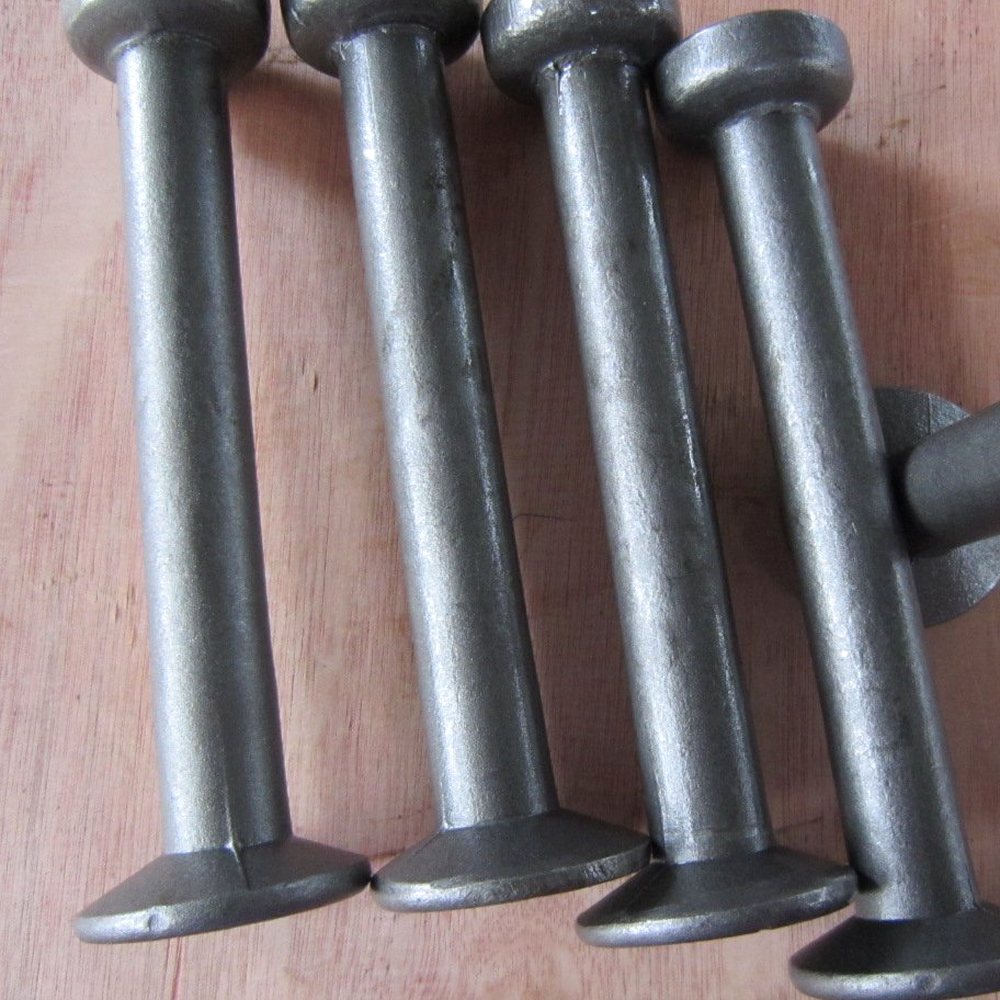

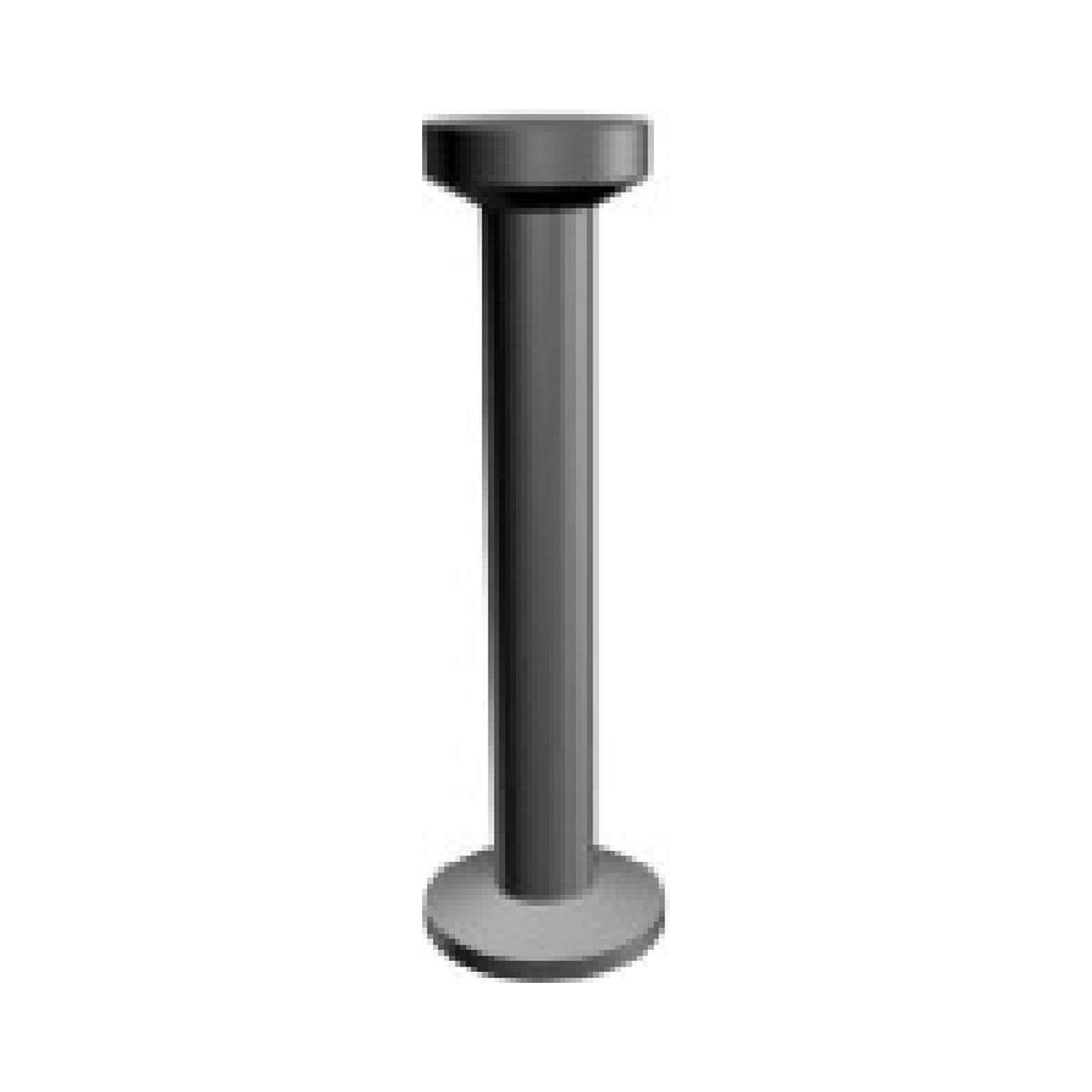

Spherical head anchor
SKU T-series · Load 1.3 – 5.0 t
Spherical head cast into the panel, plain or zinc plated, in lengths from 35 to 340 mm.
- Range
- T-013 – T-050
- Working load
- 1.3 / 2.5 / 4.0 / 5.0 t
- MOQ
- 500 pcs · stock items from 1 pallet
Values shown are typical for the standard range. Final dimensions are confirmed on your drawing and panel design.
The Spherical head anchor is cast into the panel before the pour and becomes the interface between the crane and the concrete. It is dimensioned against panel weight, lifting angle and concrete grade, and supplied with a load-test report for the batch.
Standard parts ship from stock in Ningbo. Non-standard variants are machined to drawing, with the first article sent for approval before the batch runs.
- Batch load test at 3× working load
- Steel mill certificate with every lot
- Packing designed for sea freight
- Custom sizes from 500 pieces
| 01Range | T-013 – T-050 |
|---|---|
| 02Working load | 1.3 / 2.5 / 4.0 / 5.0 t |
| 03Length | 35 – 340 mm |
| 04Surface | Plain or zinc plated |
| 05Anchorage | Cast into the panel |
| 06Packing | Pieces per box by size |
Working load limits are stated for a vertical lift. For angled lifts, apply the reduction factor on the datasheet or ask for a calculation.
Set out
Position the anchor per the approved layout drawing. Check edge distance and concrete cover before fixing.
Fix to formwork

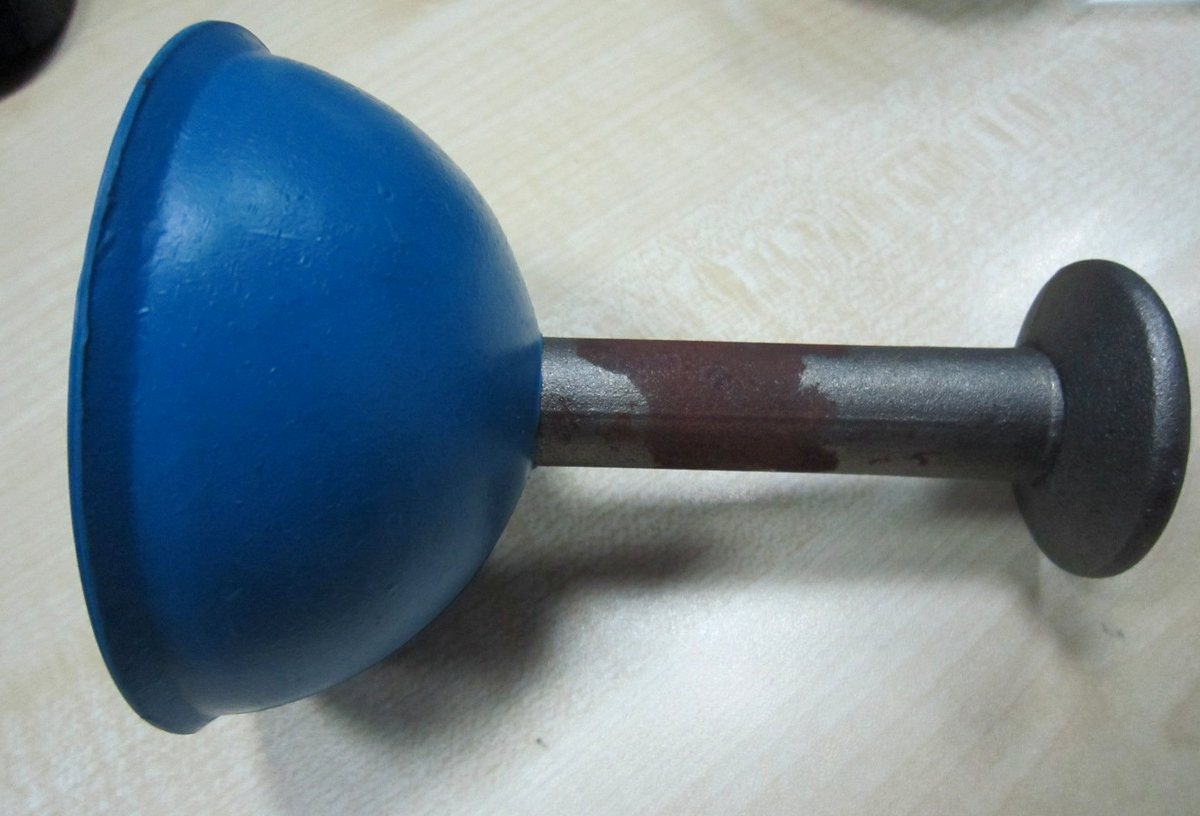

Nail or screw through the perforations. The lifting axis must be square to the panel face.
Pour and strip
Vibrate around the anchor without displacing it. Do not lift before 75% of design strength.
Lift

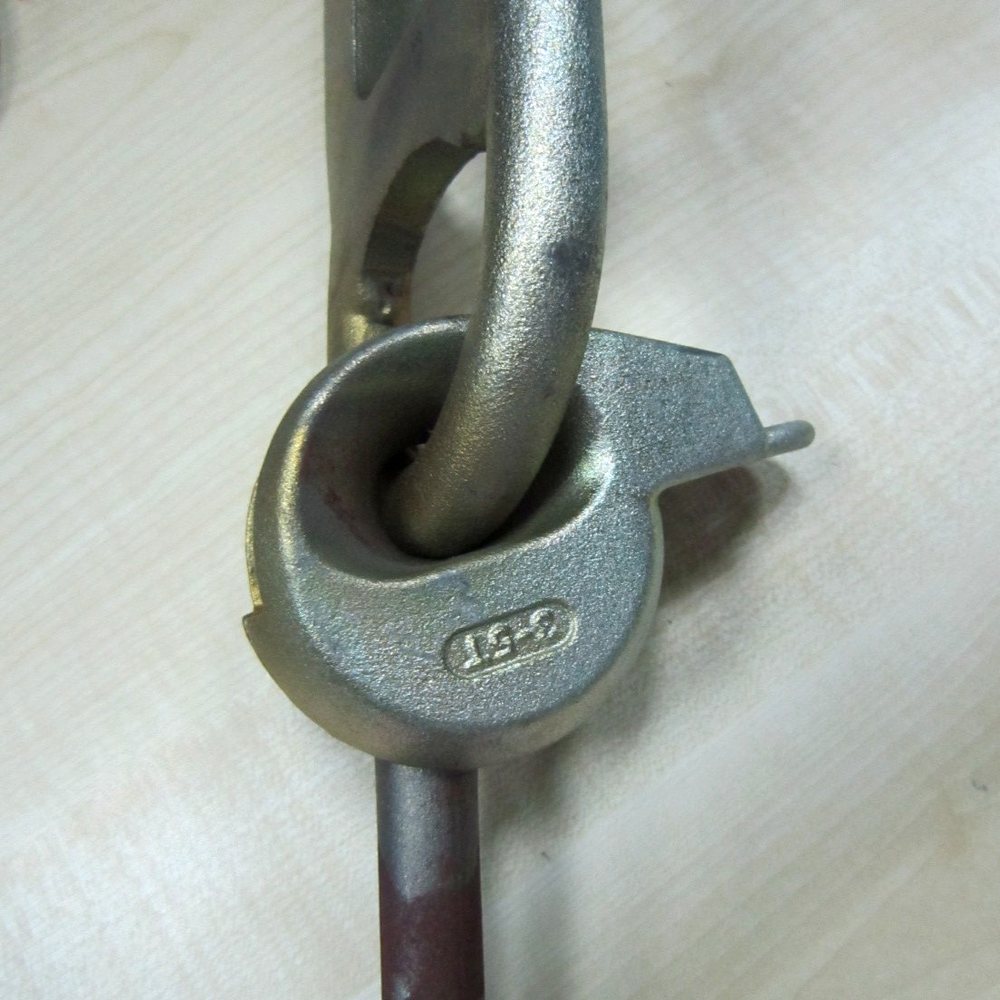

Use a clutch or loop rated above the panel weight. Stay within the lifting angle on the drawing.
Download the installation sheet with the order. Our engineers will review your first installation drawing at no cost.
Site safety is the contractor’s responsibility. Never exceed the stated working load or lifting angle.
Files are sent by email after a short review of the application. No registration required.
Common questions
The four questions that come up in every RFQ. Anything else — send a drawing.
What is the minimum order quantity?
500 pieces for standard items. Stock items can ship from one pallet.
How long does a custom part take?
Sample in 7–10 days, production 15–25 days after the drawing is approved.
What do you need to quote?
A PDF or STEP drawing, the material grade, the quantity and the destination port.
Which documents come with the goods?
Material certificates, inspection records and the packing list. Third-party test reports on request.
